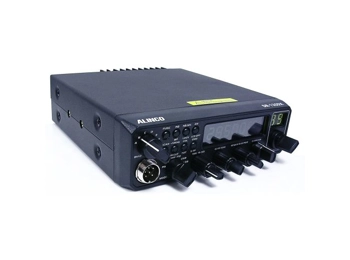

ALINCO DX-10 29MHz ALL MODE TRANSCEIVER

Alinco DX-10 (DR-135UK) 10m Multimode Transceiver - A really great value 29 MHz (10m) all mode AM/FM/SSB mobile transceiver from Alinco. Work the world on this amazing band, makes the perfect mobile station or add a suitable power supply and use at home.

For export customers,it is also PC programmable from 25 - 29.7 MHz

Specification

Frequency range (default): 28.000 - 29.700 MHz
Max Frequency range: 25.000-29.90 MHz (programmable)
Power Output: 1-12 watts FM/FM/CW 0-25 watts USB/LSB
Operating mode: AM/CW/FM/LSB/USB
Current: Transmit 6A max. Receive: 800mA (Max) 400 mA (squelched)
Channel spacing: 10 Hz/100 Hz / 1 kHz / 10 kHz
Memory: 40ch per band (up to 60 per band are programmable via optional software)
Features

Multi-colour display (7 selectable colours or rainbow mode) with backlight
RF gain
LCD S-meter
SWR meter
NB Noise Blanker and ANL function
Clarifier for fine tuning
PC programmable settings
+10 KHz offset button
Scanning features
Dual Watch function
External speaker socket (3.5mm)
Jack for CW key
CW Sidetone: 300Hz-3kHz in 10 adjustable steps
Hi-Cut function (RX tone)
Keypad lock
Programmable time-out timer
Over-voltage protection
PA facility
Reset function
Microphone connector: 6-pin
Antenna connector: PL-259 (SO239)
Power requirements: 13.8 VDC + / -15%
Dimensions: W-173 x H-51 x D-238 mm
Weight: 1.5 kg
The DX-10 can be programmed from your computer with the optional ERW-10 USB cable and software disk.

---
