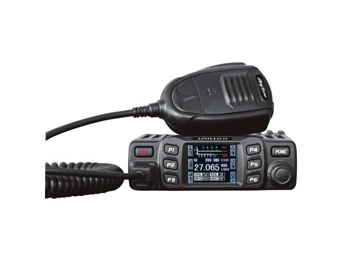

Anytone Apollo II - Mobile CB Transceiver

Anytone Apollo II - Mobile CB Transceiver

Features:

FTF LCD display
12/24V voltage (4W version only)
Full alloy body for heat radiation
Programmable keypad
CTCSS/DCS (optional)
Wireless microphone control(optional)
Cell-phone APP control (optional)
AM/FM multi norms
Flexible menu and programming software
DTMF
SQ, ASQ
SQ, ASQ open/close value setting
RF Gain
Scan
Dual watch
Programmable RB
CH9/19
NB
HI-CUT
Voltage protection
8 memory channel
TOT
Backlight control
Automatic power on
Keypad lock
Included in Box:

Radio
Microphone
Screws
Pads
Adjusting screws
Microphone Hanger
Install bracket
Non-slip mat
Fuse(5A 250V)
General Specifications:

Modulation Mode: AM/FM
Frequency Range: 26.565 ~ 27.99125MHz (FM), 26.965 ~ 27.405MHz (AM)
Frequency Tolerance: ±5.0ppm
Input Voltage: 12/24V
Dimensions(mm): 124(W) x 163(D) x 39(H)
Weight(approx.): 670g
Frequency Control: PLL Synthesizer
Operating Temperature Range: -20°C TO + 55° C
Current Drain: Transmit: 2A MAX, Receive: Squelched 0.3A, VOL Max: 0.8A
Antenna Connector: UHF, SO-239
Transmitter Specifications:

Power Output: 4 Watts FM/AM
Transmission Interference: inferior to 4nW(-54dBm)
Frequency Response: 300-3000Hz
Modulated Signal Distortion: inferior to 5%
Output Impedance: 50 Ohms
Receiver Specifications:

Sensitivity: Less than 1uV for 10dB(S+N)/N
Image Rejection: 70dB
Adjacent Channel Rejection: 60dB
IF Frequencies: 1st 10.695MHz, 2nd 455KHz
Automatic Gain Control (AGC): Less than 10dB change in audio, Output for inputs from 10 to 50000uV
Squelch: less than 1uV
Audio Output Power: 3 watts into 8 ohms
Frequency Response: 300-3000Hz

---
