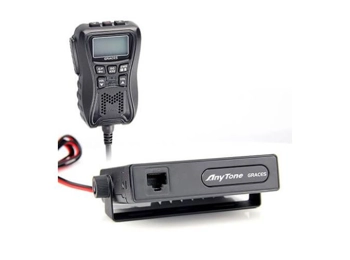

Anytone GRACES - Mobile CB Radio Transceiver

AnyTone GRACES Mobile Transceiver CB Radio

Features:

Separate Microphone Control with LCD
New Audio Processing Solution Provides Excellent Audio Quality
1~5 Optional Levels of RX and TX Audio Noise Reduction
VOX Function of Noise Suppression
7 LCD Backlight Color Options
38 Groups of CTCSS Tone, 104 Groups of DCS Code
Full Channel Scan
Time Out Timer
General Specifications:

Modulation Mode: AM/FM
Frequency Range: 26.965-27.405MHz
Frequency Tolerance : ±5.0ppm
Input Voltage: 13.2V
Dimensions: 111mm x 104mm x 25mm
Weight: 300g
Frequency Control: PLL Synthesizer
Operating Temperature Range: -20℃ to +50℃
Current Drain: Transmit 2A MAX, Receive: Squelched 0.3A, VOL Max: 0.8A
Antenna Connector: UHF, SO-239
Transmitter Specifications:

Power Output: 4 Watts FM/AM
Transmission Iinterference: inferior to 4nW(-54dBm)
Frequency Response: 300-3000Hz
Modulated Signal Distortion: inferior to 5%
Output Impedance: 50 Ohms
Receiver Specifications:

Sensitivity: Less than 1uV for 10dB(S+N)/N
Image Rejection: 70dB
Adjacent Channel Rejection: 60dB
IF Frequencies: 1st 10.695MHz, 2nd 455KHz
Automatic Gain Control(AGC): Less than 10dB change in audio, Output for inputs from 10 to 50000uV
Squelch: less than 1uV
Audio Output Power: 1Watts
Frequency Response: 300-3000Hz

---
