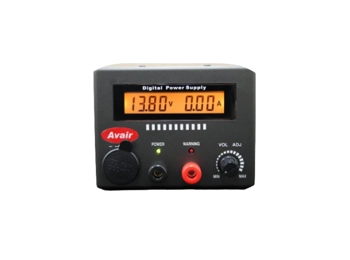

AVAIR AV-2025D (25 Amp) (Digital Power Supply)

AVAIR AV-2025D (25 Amp) (Digital Power Supply)

25 Amp Digital display 110-124v Switch Mode PSU

The AV-2025D is a lightweight, high performance, high efficiency, durable switch mode power supply designed to match both the performance of modern digital transceivers and the size to complement any station.

The LCD back-lit display gives large clear voltage and current readings nwith an amber back-lit for dark environments.

Also incorporated is a multifunction control that gives the operator three features:

Normal turning gives Voltage adjustment at 0.008V steps
Push and display show 'Fast' that gives Voltage adjustment at 0.1V steps
Push and hold and the voltage readout flashes to indicate the Voltage is fixed and not adjustable until held again to unlock
Specification

Output Voltage: 0.5 - 17VDC variable
Output Voltage Regulation: less than 1%
Output Current 22A Continuous: 25A peak
Input Voltage: 110- 240VAC (switchable)
Ripple: less than 9mVp-p at rated load
Red Warning LED, Green Power LED
Digital Back-lit Dual V/A LCD Display
Voltage Lock Feature: Multifunction Control
Rear Mounted Cooling Fan
Short Circuit: Over Voltage, Over Load and Over Temperature Protection
Detachable Mains Lead with On/Off Switch
Dual Terminal Posts + Cigar Lighter Socket
Size: D-180 x W-126 x H-100mm
Weigh:t 1.5Kg

---
