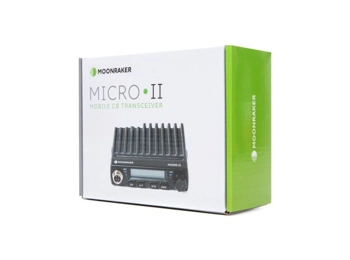

Moonraker MICRO II Multi Standard CB Transceiver

Moonraker MICRO II Multi Standard CB Transceiver

A great Micro sized CB radio, complete ready to go with cigar power lead for 12v supply, microphone and bracket all at a budget price!

Specificaton


Modulation Mode: AM/FM
Frequency Range: 26.330 to 27.99125 MHz (Multistandard)
Frequency Set: UK 40ch 27.60125 to 27.99125 MHz
Frequency Control: P.L.L.
Frequency Tolerance: ±5.0ppm
Operating Temperature: -20°/+50°C
DC Input Voltage: 13.2V
Dimensions: H-104mm × W-108mm × D-25mm
Weight: 416g
Antenna Connector: UHF,SO-239
Current drain Transmit: 2A MAX /Receive: Squelched 0.3A /VOL Max: 0.8A
Transmitter

Power Output: 4 Watt AM/FM
Transmission Interference: inferior to 4nW (-54dbm)
Frequency Response: 300-3000Hz
Modulation Signal Distortion: inferior to 5% Output
Impedance: 50 ohms
Receiver

Sensitivity: Less than 1uV for 10dB(S+N)/N
Image Rejection: 70dB
Adjacent Channel Rejection: 60dB
IF Frequencies: 1st 10.695MHz 2nd 455KHz
AGC: Less than 10dB change in audio
Squelch: Output for inputs from 10 to 50000uV /Less than 1uV
Audio Output Power: 1 Watt
Frequency Response: 300-3000Hz

---
