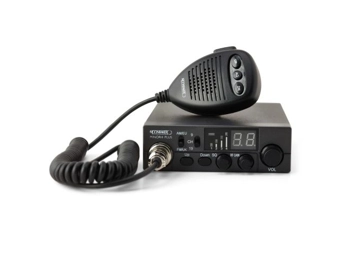

Moonraker Minor II Plus 12/24v CB Radio Transceiver

Moonraker Minor II Plus 12/24v CB Radio Transceiver

A high quality CB rig covering all standard CB frequencies. The Minor II (works on both 12v and 24v)

Included with the radio is a DC lead with fitted cigarette plug, perfect for connecting straight to the car or van, as well as a command microphone.

Also supplied with the kit is a mounting bracket, with thumb screws, as well as a microphone hanging bracket.

Features

Frequency Range: 26.965-27.405-27.60125-27.99125 MHz
Channels: 80 FM
DC input voltage: 13.8Vdc, plus mn:15%
Dimensions: H-38mm x W-115mm x D-150mm
Weight: 0.8kg
bTransmitter

System CPU controlled: P.L.L. synthesizer
Maximum RF power: 4W at 13.8Vdc
1.8 KHz plus mn 0.2KHz (FM)
ANT impedance: 50ohm unbalanced
Current drain: 1000mA (at no modulation)
Receiver

System CPU controlled: Double conversion super
IF: 1deg: 10.7MHz / 2deg: 450 KHz
Sensitivity: -120dBm for 12dB SINAD (FM)
-107dBm for 12dB SINAD (AM)
Audio output: @10% THD 2.5W at 8 ohm
Audio distortion: alt 8% at 1 KHz
Image rejection: 65dB
Adjacent channel: 85dB
Signal rise ratio: 45dB
Current drain: 220mA

---
