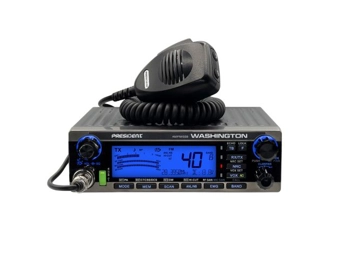

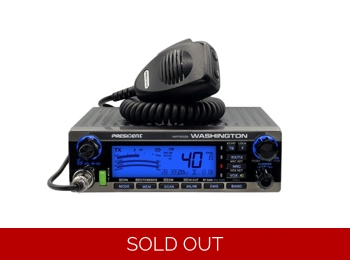

President Washington 10m & 12m 80W Mobile Transceiver
Product Code: PRE-WASH
Rating: Be the first to write a review
Product Condition: New
President Washington 10m & 12m 80W Mobile Transceiver
President has always had a reputation for both quality and performance, and the new range continue this tradition.
Prepare to be blown away by the power of the President Washington 10m & 12m 80W Transceiver! This mobile rig packs a massive 80 watts of output for unbeatable transmission range on both the 10 and 12 metre bands. Whether you're cruising across town or traversing the countryside, the President Washington ensures you can always reach your fellow hams with incredible clarity. Treat yourself to a top-tier transceiver from a trusted brand. Upgrade your mobile setup today with the raw power of the President Washington!
Accessories supplied: 1 microphone UP/DOWN and its hanger , 1 mounting bracket with fixing screws , power cord with fuse
specification
Frequncy ranges: 24.890 - 24.990 MHz and 28.000 - 29.700 MHz
Moicophone plug: Front 6 pins
Compatible microphne type: Electret, Dymanic
Power supply: Nominal 13.8V DC, negative ground (10.5 VDC to 16.0 VDC)
Antenna impedance: 50 ohms
Antenna connector: SO-239
Dimensions: W-170 x H-52 x D-250 mm
Weight: 1.4 Kg
Multiconfiguration: EU / U / D / PL / IN
Channel preselection: 2, channel 9 & 19 , emergency channel (EMG) programmable
Modulation modes: AM/ FM / USB / LSB
CTCSS: 38 tones
DCS: 104 codes
Transmission
Frequency allowance: ± 200 Hz
Carrier power: 70 W PEP (AM/USB/LSB) / 50 W (FM)
Power limitation: 4/10W
APM: Yes
Transmission interference: less than 4 nW (-54 dBm)
Audio response: 300 Hz to 3 kHz
Emitted power in the adj. channel: Less than 20 μW
Microphone sensitivity: 3 mV
Drain: 6 A (with modulation)
Modulated signal distortion: 2%
Reception
Max. sensitivity at 20 dB sinad: 0.7 µV - 110 dBm (AM) / 0.35 µV - 116 dBm (FM) / 0.28 µV - 118 dBm (USB/LSB/CW)
Frequency response: 300 Hz to 3 kHz
Adjacent channel selectivity: 60 dB
Maximum audio power: 3 W
Squelch sensitivity: min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
Frequency image rejection rate: 60 dB
Intermediate frequency rej. rate: 70 dB
Drain: 400 mA nominal / 600 mA max.
