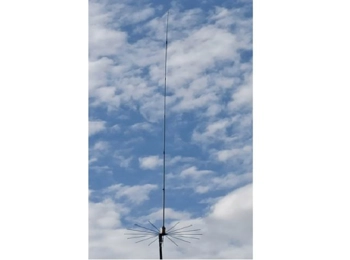

Sirio 2016 CB 5/8 Wave Base Antenna
Product Code: SIRIO-2016
Rating: Be the first to write a review
Product Condition: New
Sirio 2016 CB 5/8 Wave Base Antenna
This is a high quality base station antenna tunable from 26.4 to 28.2 Mhz. Come with high power impedance transformer. Water proof, strong and easy to install, they allow very good links!
This antenna is part of the Sirio Series 2000 CB antenna range. This antenna, the Serio 2016 CB antenna, is the 16 radial version.
Key Features/Specifications:
High Power handling Capability
Low Radiation angle for excellent DX
Coil protected by transparent cover
Whip equipped with waterproof jointing sleeve
Equipped with excellent multi element ground plane
Protection from static discharges DC-Ground
Made of aluminium alloy 6063 T-832
Type: 5/8λ ground plane
Frequency range: tunable from 26.4 to 28.2 MHz
Impedance: 50Ω
Radiation (H-plane): 360° omnidirectional
Polarization: linear vertical
Gain: 1.3 dBd, 3.45 dBi
Bandwidth @ SWR ≤ 2: SIRIO 2016 : ≥ 2100 KHz
SWR @ res. freq.: ≤ 1.1
Max. power: 1000 Watts (CW) continuous 3000 Watts (CW) short time
Feed system / position: Transformer DC-ground / base
Connector: UHF-female
Materials: Aluminium, Copper, Nylon
This is a high quality base station antenna tunable from 26.4 to 28.2 Mhz. Come with high power impedance transformer. Water proof, strong and easy to install, they allow very good links!
This antenna is part of the Sirio Series 2000 CB antenna range. This antenna, the Serio 2016 CB antenna, is the 16 radial version.
Key Features/Specifications:
High Power handling Capability
Low Radiation angle for excellent DX
Coil protected by transparent cover
Whip equipped with waterproof jointing sleeve
Equipped with excellent multi element ground plane
Protection from static discharges DC-Ground
Made of aluminium alloy 6063 T-832
Type: 5/8λ ground plane
Frequency range: tunable from 26.4 to 28.2 MHz
Impedance: 50Ω
Radiation (H-plane): 360° omnidirectional
Polarization: linear vertical
Gain: 1.3 dBd, 3.45 dBi
Bandwidth @ SWR ≤ 2: SIRIO 2016 : ≥ 2100 KHz
SWR @ res. freq.: ≤ 1.1
Max. power: 1000 Watts (CW) continuous 3000 Watts (CW) short time
Feed system / position: Transformer DC-ground / base
Connector: UHF-female
Materials: Aluminium, Copper, Nylon
