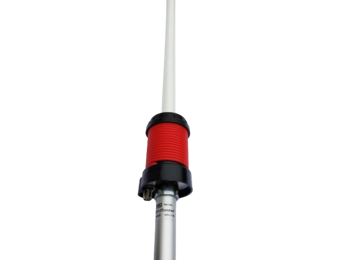

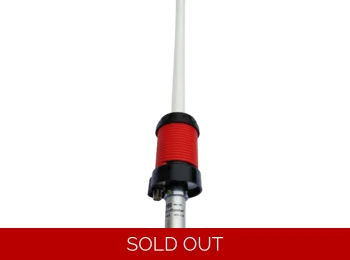

Sirio Gain-Master (5/8 Wave) 25-30MHz - CB & 10m Base Antenna (New Upgrade Version)
Product Code: G-MASTER
Rating: Be the first to write a review
Brand: Sirio
Product Condition: New
Sirio Gain-Master (5/8 Wave) 25-30MHz - CB & 10m Base Antenna (New Upgrade Version)
Gain-Master is a 0.625 high tech fiberglass base station antenna for wide band antenna from 10m to 12m* amateur band
Key Features/Specifications:
Base Antenna 25.5-30MHz
Telescopic Fibreglass Tubes Construction
Type - 0.625 wave centre fed vertical dipole
Impedance - 50Ohms
Radiation - Omnidirectional
Polarization - Linear Vertical
Max Gain on Horizon - 1-2 dB higher than conventional 5/8th wave
Max Power - 500 watts CW continuous / 1000 watts short time
Lightning Protection - All metal parts are DC grounded, inner conductor shows DC-Short
Connector - UHF Female PTFE Insulator, and gold plated centre pin.
Composition - White Fibreglass tube radiator / Stainless Steel Hardware
Wind Resistance - up to 160km/h
Length (approx) - 7360mm with bracket / radiator 6850mm
Packing dimensions - 1950 x 110 x 120mm
Weight (approx) 3kg
Mounting Mast - 35-54mm
Gain-Master is a 0.625 high tech fiberglass base station antenna for wide band antenna from 10m to 12m* amateur band
Key Features/Specifications:
Base Antenna 25.5-30MHz
Telescopic Fibreglass Tubes Construction
Type - 0.625 wave centre fed vertical dipole
Impedance - 50Ohms
Radiation - Omnidirectional
Polarization - Linear Vertical
Max Gain on Horizon - 1-2 dB higher than conventional 5/8th wave
Max Power - 500 watts CW continuous / 1000 watts short time
Lightning Protection - All metal parts are DC grounded, inner conductor shows DC-Short
Connector - UHF Female PTFE Insulator, and gold plated centre pin.
Composition - White Fibreglass tube radiator / Stainless Steel Hardware
Wind Resistance - up to 160km/h
Length (approx) - 7360mm with bracket / radiator 6850mm
Packing dimensions - 1950 x 110 x 120mm
Weight (approx) 3kg
Mounting Mast - 35-54mm
